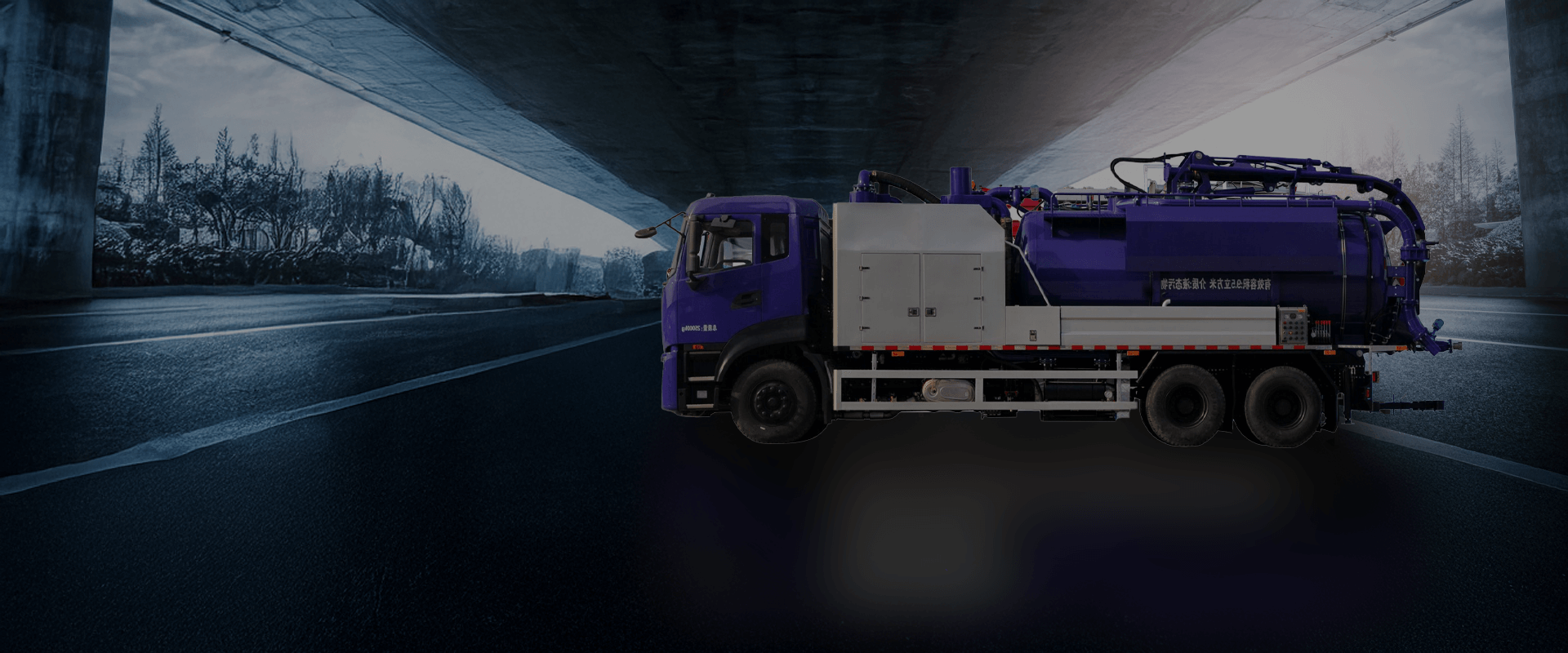

Super Sucker
VT3300F W/D
Features
GVW
33000kg
Brand
FLOWTECH
Power
340HP
Emission standard
EURO V
Equipment
fire extinguisher
What are industrial vacuum trucks?
A dry and wet substances vacuum truck works on the principle of pneumatic transport (air movement). The vacuum tank on the vacuum truck is placed under negative pressure by the large amount of air displacement created by the blower. The air loses its speed in the tank due to the volume increase, as a result, it will no longer be able to carry large quantities of product. In particular, heavier particles will drop down. The air and product is then thrown against the bottom of the vacuum tank, so the speed decreases even more and even more product drops down. This is why dry substances trucks are also called air movement trucks.
VT3300F is equipped with unique water bath dust removal system can effectively treat flammable chemical dust with lower ignition points such as FeS
Can be used for the suction of the suction of dry materials, such as catalysts, sand and gravel, dust removal ash, coal ash, cement, lime powder, etc. in industries such as petrochemicals, steel, coking, power generation, and cement, for the collection and transportation of dry materials. And wet materials, such as hazardous and corrosive wastewater, industrial waste oil, and wastewater in the chemical industry
Cyclone fine dust removal system meets less suction resistance compared to traditional bag dust removal system, the suction efficiency is enhanced, and the suction application scenarios are greatly improved
Automatic cleaning and recovery system works on the cyclone fine dust removal system, improve the vehicle operation efficiency
Standard technical Features
- Volume : 10m3
- Material : Stainless steel 316L
- Shape : cylindrical
- Shell thinkness : 5mm
- Dish end thickness : 5mm
- Inner shell processing technology Designed : anti corrosion treatment, spraying glass flakes
- Designed pressure : -0.1/4bar
- Reinforcement : cold roll forming U-shape, around the outer of the tank body
- Front tipping cylinder : max angle 45°
- Tank safety support : keep operator safe during maintenence
- Shut off : stainless steel float ball to cut off vacuum once tank full
- Safety accessories : overpressure safety valve, rupture disc, pressure recording table
- Inlet & outlet valve : 6inch
- Rear door operate : 6 hydraulic locking cylinders and 2 opening cylinders
- Other features : Manhole, ladder, folding safety handrail, anti slip walkway board, rear door anti pinch protection, fire extinguisher box, beacon work light, anti rollover protection, grounding system, billboard
- Swivel boom :remote controlled swivel boom and inlet valve on top, 6inch*10m suction hose
- Rear valve : manuanly controlled rear valve
- Top manhole : loading through top manhole
- Type : liquid ring
- Air flow : 3400m3/h
- Vacuum level : -0.9bar
- Filter : protect the vacuum pump
- Drive : hydraulically driven
- Air flow : 154m3/h
- Vacuum level : 2bar
- Filter : protect the pump
- Inertial dust collector : removes large particle dust
- Multi stage cyclone fine dust : removal system for fine dust
- Water bath dust treatment system : adopts a water bath design to remove finer dust particles
- Tank volume : 2m3
- Water pump type : tri plunger
- Water flow : 30L/min@200bar
- Pump protection : filter
- Equipped : 20 meter retractable high-pressure hose reel, water gun
- Subframe : is made of high-strength steel and installed according to the chassis structure
- Hinge axis : strong and flexible hinge device on the rear side of the tank.
- Tank supports : meet safety standards
- Hydraulic pump : hydraulic pump required for installation
- Oil tank : large capacity oil tank
- Control : hydraulic commands are used to open and close the high-pressure flushing water pump
open/close the rear door; lift the tank; extend / retract the suction boom, lift and lower, rotate left/ right
- Emergency stop : emergency controls are located on the main control panel
- Emergency aeration : electronic control, to achieve emergency aeration when PLC system fails
- Work lights : two work lights can be installed on the front and rear ends of the vehicle.
- Bumper : heavy-duty vehicle anti-collision bumper is installed on the rear of the vehicle.
- Controls : all easy-to-operate controls provided
- Installation : all control components and installation locations can be determined by the user
- Controls : all controls are housed in a stainless steel tool box
- Marking : the entire vehicle is clearly marked on the required parts
- Sandblasting : all steel structures and stainless steel parts are sandblasted before painting
- Paint : the entire vehicle has two layers of primer and two layers of topcoat
