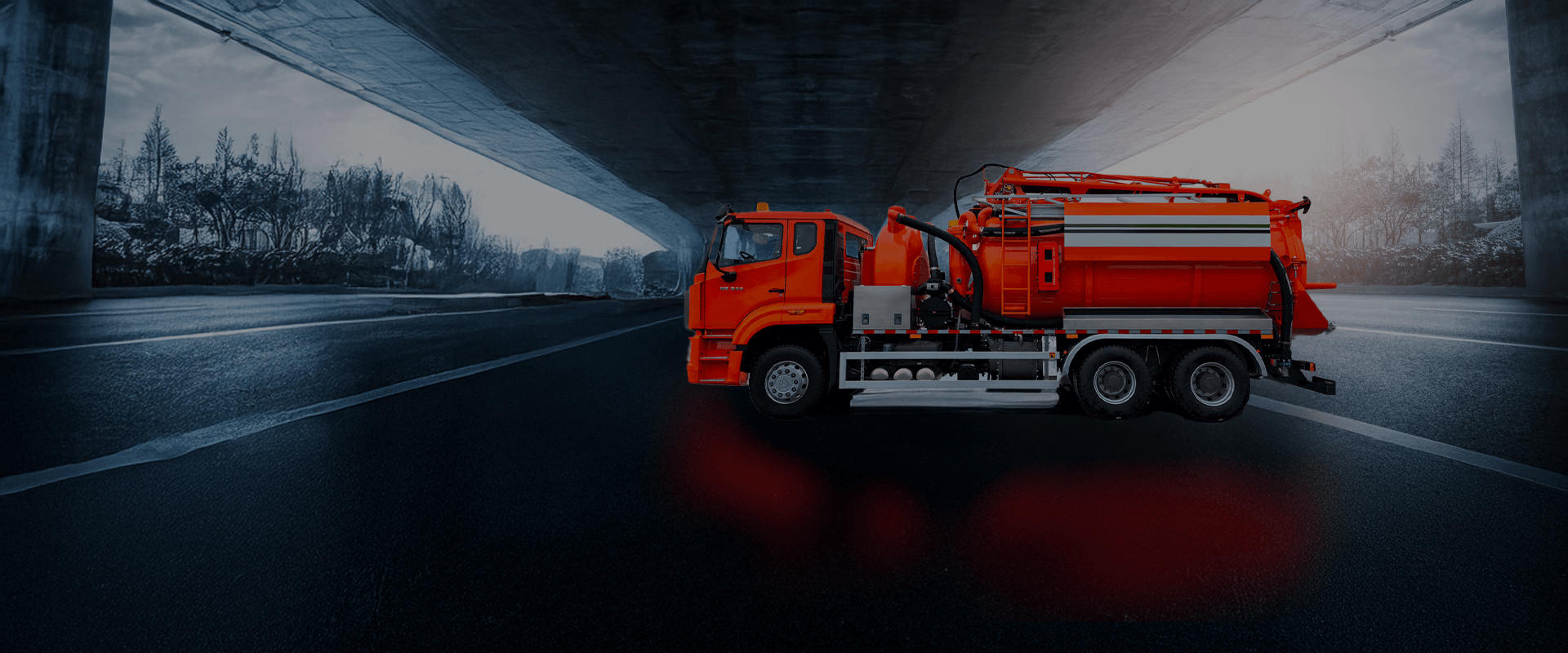

Super Sucker
VT3300 Wet
Features
GVW
33000kg
Brand
FLOWTECH
Power
340HP
Emission standard
EURO V
Equipment
fire extinguisher
What are industrial vacuum trucks?
Flowtech industrial vacuum trucks, also known as industrial vacuum loaders have a long history and world wide solid reputation in the field as powerful and efficient industrial vacuum loader that recover, contain, and carry solids, dry bulk powders, liquids, slurries, and thick sludge from hard to reach areas. Flowtech industrial vacuum trucks are designed from the ground up with input from customers to tackle the most demanding wet or dry industrial cleaning applications. Various models, options and off-loading solutions are available to ensure the best fit for the industrial cleaning applications.
What do industrial vacuum trucks do?
Flowtech industrial vacuum trucks are built to endure, cleaning up a full spectrum of materials and recovering and recycling valuable raw materials, including solids, dry bulk powders, liquids, slurries, thick sludge and drilling mud. These Flowtech industrial vacuum trucks are simple to operate and easy to maintain, giving you rugged performance whenever and wherever you need it. Our industrial vacuum trucks continue to function even in extreme conditions. Reliable and durable, KOKS industrial vacuum trucks.
The vehicle is equipped with outstanding chassis with GCC certificate, which is used for suction of liquid sludge and hazardous industrial waste. It is equipped with a high-pressure cleaning system, suitable for suction, discharge, and transportation of liquids, as well as hazardous and contaminated substances such as sludge, grease, oil, fuel, and chemicals
- Select top brand of vacuum pump, with high vacuum level, large air flow, and low noise
- Hydraulically driven swivel boom, achieving horizontal extension, up and down lifting, and left and right rotation, with strong adaptability to working environment.
- Using single front tipping cylinder, the vehicle has a low center of gravity and high safety.
- Remote control can effectively reduce the labor intensity and danger of operators.
- The digital display system can display real-time information such as loading volume and vacuum pressure, making it convenient for observation and use.
Standard technical Features
- Volume : 12m3
- Material : stainless steel 316L
- Shape : cylindrical
- Shell thinkness : 5mm
- Dish end thickness : 5mm
- Designed vacuum pressure : 100%
- Working pressure : -0.9bar
- Reinforcement : cold roll forming U-shape, around the outer of the tank body
- Front tipping cylinder : max angle 45°
- Liquid level & volume indicator : digital display on control panel shows the loaded material volume
- liquid level instrument is side mounted
- Safety accessories : overpressure safety valve, rupture disc, pressure record table
- Other accessories : open manhole cover, ladder, folding safety handrail, anti-slip
- walkway board, rear door anti pinch protection, fire extinguisher
- box, beacon work light, anti rollover protection, tank safety
- support, electrostatic grounding plate system, billboard
- Swivel boom : remote control valve on swivel boom on top
- Rear valve : manuanly controlled rear valve
- Top manhole : loading through top manhole
- Swivel boom : remote control valve on swivel boom on top
- Rear valve : manuanly controlled rear valve
- Top manhole : loading through top manhole
- Type : liquid ring type
- Air flow : 3100m3/h
- Max vacuum level : 90%
- Pump protection :
- stainless steel float ball
- cyclone filter
- stainless steel filter
- automatic vacuum relief valve
- Diameter : 6 inches
- Radius : extended between 3680mm-5030mm
- Installation : top
- Material : stainless steel 304 and flexible rubber hose
- Horizontal positioning : hydraulic power for horizontal rotation 270 degreesVertical positioning : lift 2770mm
- Depth drop : 1420mm
- Control : remote control within 100m distance, manual control also available
- Type : Oil-free vane type
- Working pressure : 2.5bar
- Air flow : 154m3/h
- Form : tri plunger type
- Pressure : 140bar
- Flow : 15L/min@140bar
- Water tank volume : 1.2 m3
- Equipped : 20m automatic retractable high-pressure hose reel, spray gun, and hand washing hose
- Subframe : is made of high-strength steel and installed according to the chassis structure
- Hinge axis : strong and flexible hinge device on the rear side of the tank.
- Tank supports : meet safety standards
- Hydraulic pump : hydraulic pump required for installation
- Oil tank : large capacity oil tank
- Control : hydraulic commands are used to open and close the high-pressure flushing water pump
open/close the rear door; lift the tank; extend / retract the suction boom, lift and lower, rotate left/ right
- Emergency stop : emergency controls are located on the main control panel
- Emergency aeration : electronic control, to achieve emergency aeration when PLC system fails
- Work lights : two work lights can be installed on the front and rear ends of the vehicle.
- Bumper : heavy-duty vehicle anti-collision bumper is installed on the rear of the vehicle.
- Controls : all easy-to-operate controls provided
- Installation : all control components and installation locations can be determined by the user
- Controls : all controls are housed in a stainless steel tool box
- Marking : the entire vehicle is clearly marked on the required parts
More information?
Please contact us!
Do you have a question about the Flowtech or comment about our products and services?
Just get directly in touch with our Customer Service desk
Applications for use of wet substances in vacuum equipment
- Emergency clean-up
- Technical chemical cleaning
- Industrial cleaning
- Offshore activities
- Oil separation
- Onshore activities
- Ship cleaning
- Petro-chemical activities
- Well cleaning
- Sewer cleaning
- Septic tank cleaning
- Shutdown cleaning work
- Silo cleaning
- Soil boring
- Transport work
- Vacuum cleaning work
- Grease pit cleaning
- Water surface cleaning
- Collection of waste oil
- Municipal cleaning
- Pressuring liquids
