OBC

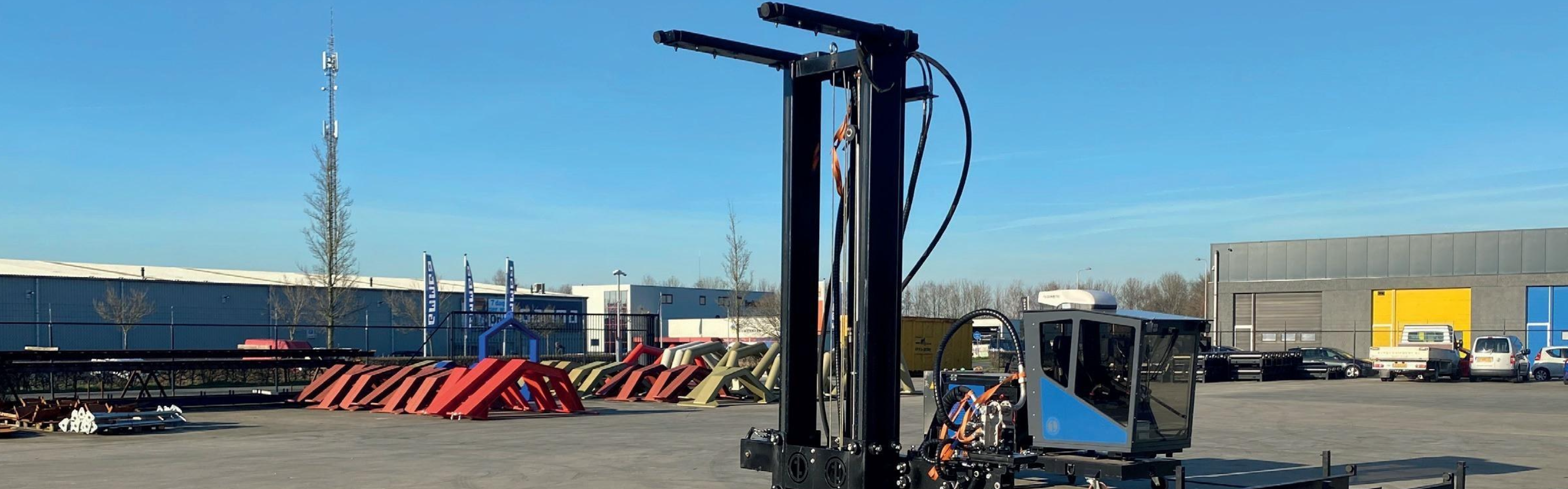

The OBC-C is an outside bundle cleaner used in the cleaning bay during turnarounds

• Frame weight (standard) 2,800 kg (6,173 lb)

• Dimensions operating mode (standard) 1215.0 x 252.5 x 343.0 cm

• Dimensions operating mode (with optional hydraulic turnable tower) 1215.0 x 252.5 x 373.0 cm

• Dimensions operating mode (with optional manual turnable tower) 1215.0 x 252.5 x 361.0 cm

• Dimension transport mode (all models) 620.0 x 247.0 x 220.0 cm

• Dimensions container transport mode (nozzle block disassembled) (all models) 620.0 x 225.5 x 220.0 cm

• Max. cabin weight 1,700 kg (3,748 lb)

• Max. cabin dimensions 345.0 x 130.0 x 205.0 cm

• Additional height optional A/C roof unit 22.5 cm

• Max. cabin tilt for visibility 10 degrees

• Max. water pressure 1,000 bar (14,503 psi)

• Recommended water ffow 200 l/min (52.8 gal/min)

• Number of nozzles (standard) : 3
