50000

WHY50000 high pressure pumps are built to operate at the continuous maximum duty stated in the performance parameters. Just compare the crankshaft speed, average plunger speed, plunger diameter and power rating.

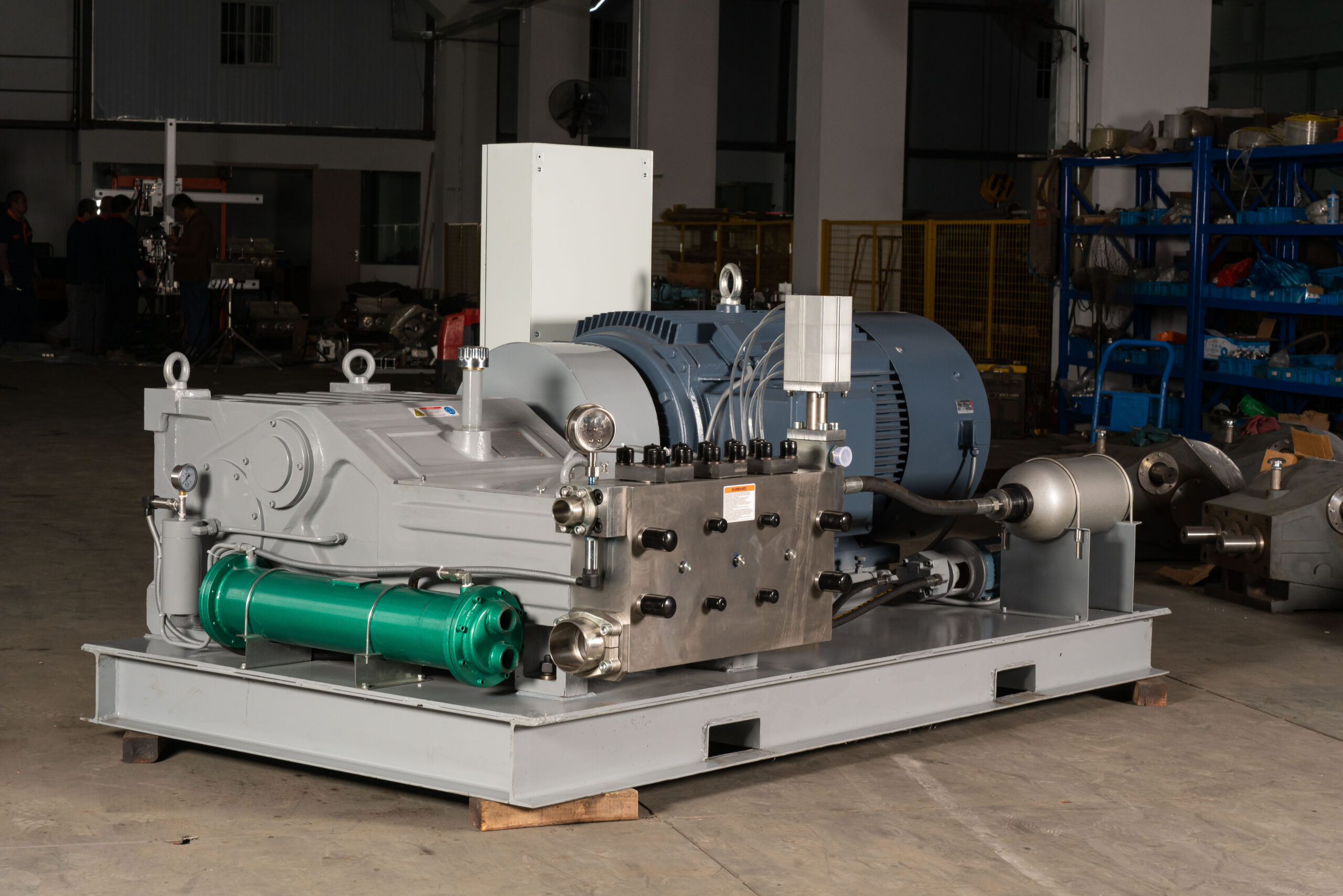

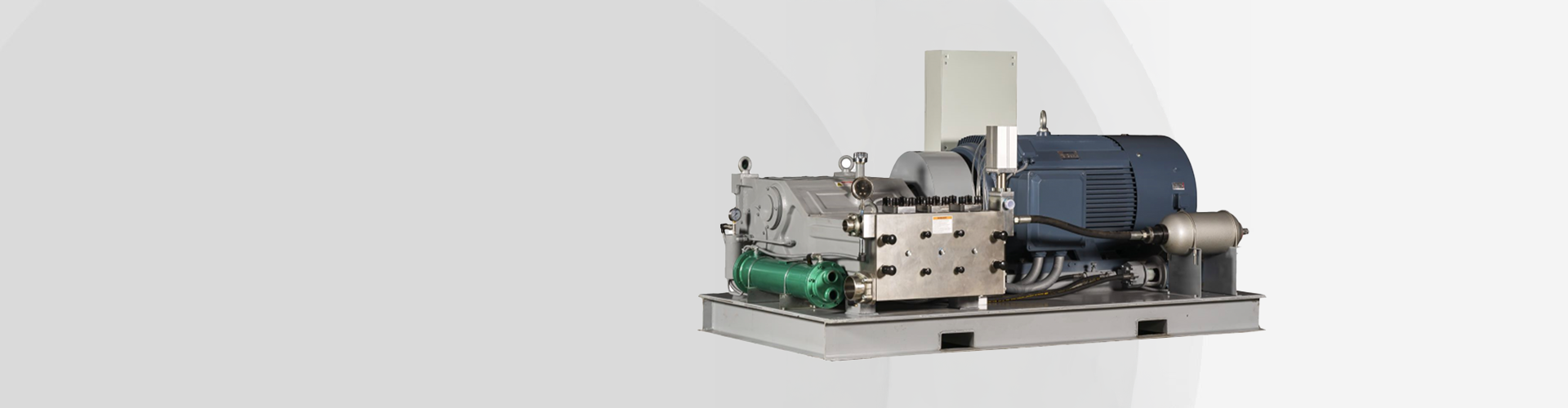

Stationary unit with electric motor

Length: 3500 mm - Width: 2000 mm - Height: 1800 mm - Weight: 4500 kg

Stationary unit with diesel engine

Length: 4500 mm - Width: 2000 mm - Height: 2200 mm - Weight: 6000 kg

- Features

Stainless steel pump head free of alternating stress
Spring Preload high pressure sealing make it longer life
Solid ceramic plunger to ensure high strength and stable operation
An integrated lubricating oil and piston cooling system to improve the service life
The crankshaft is made of a high strength forging process and is specially treated

Built-in double gear reducer to make transmission balance higher efficiency
Special design of the crankcase magnetic filter
Crankcase forced lubrication system
An integrated ball type liquid inlet valve design, greatly improving the efficiency of fluid mechanics
Computational fluid mechanics design in dynamic load to ensure the highest reliability under max duty working condition

Model	Plunger Diameter(mm)	Flow (l/min)	RBR 280kw (bar)	RBR 315kw (bar)	RBR 355kw (bar)	RBR 400kw (bar)	RBR 450kw (bar)	RBR 500kw (bar)	RBR 550kw (bar)	D n1	R.P.M n2
WHY50030 WHY50035 WHY50040 WHY50045 WHY50050 WHY50055 WHY50060 WHY50065 WHY50070 WHY50075 WHY50080 WHY50085 WHY50090 WHY50095 WHY50100 WHY50105 WHY50110	30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110	99 112 175 222 274 332 395 463 537 617 702 792 888 990 1096 1209 1327	1490 1310 840 660 535 445 370 315 275 240 210 185 165 150 135 120 110	1675 1475 945 745 605 500 420 355 310 270 235 210 185 165 150 135 125	1890 1660 1060 840 680 560 470 400 345 300 265 235 210 190 170 155 140	2130 1870 1195 945 765 635 530 455 390 340 300 265 235 210 190 175 160	2395 2105 1345 1065 860 710 600 510 440 385 335 300 265 240 215 195 180	2660 2340 1495 1180 960 790 665 565 490 425 375 330 295 265 240 215 200	2925 2570 1645 1300 1055 870 730 625 535 470 410 365 325 290 265 240 220	1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500	388 388 388 388 388 388 388 388 388 388 388 388 388 388 388 388 388
