45000

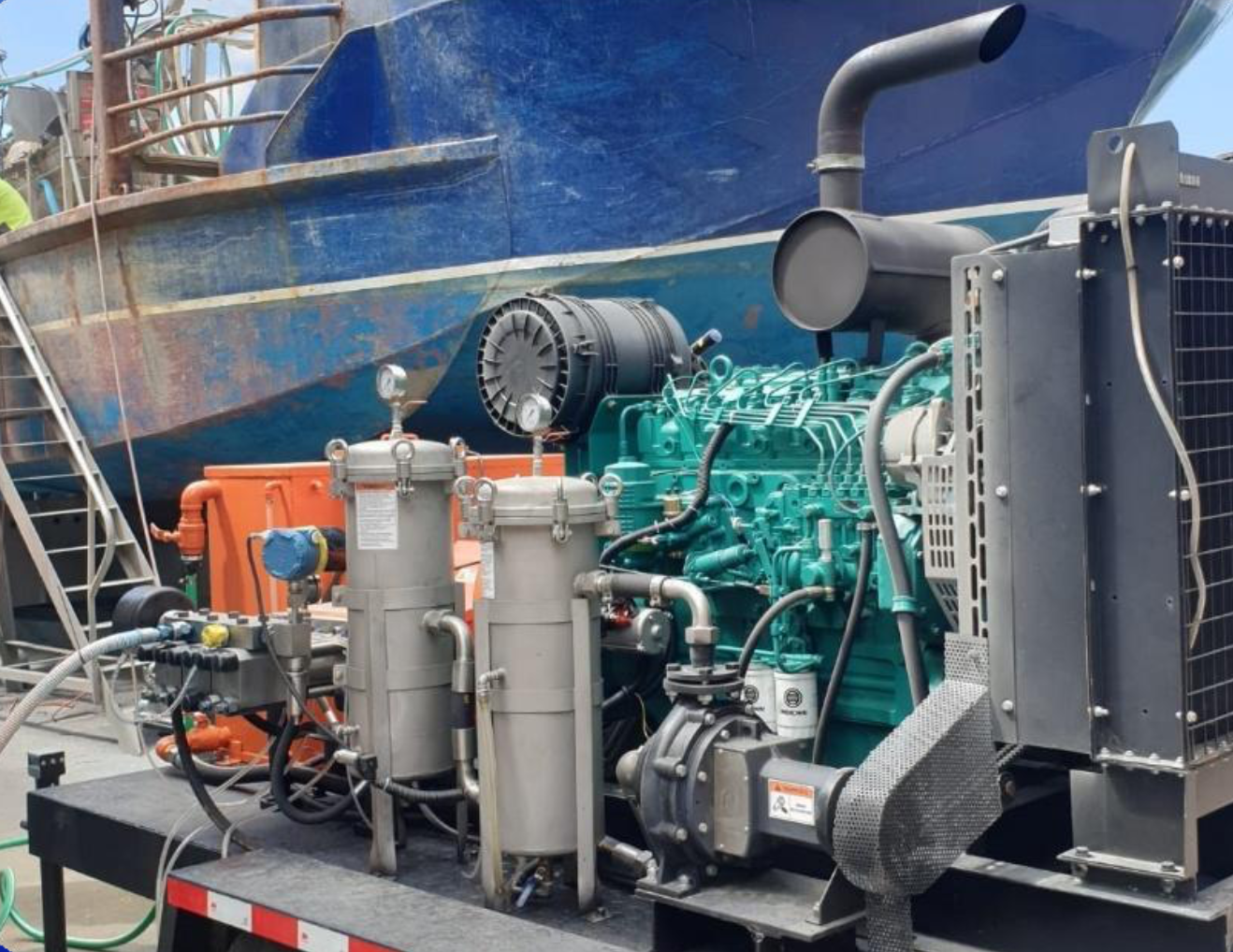

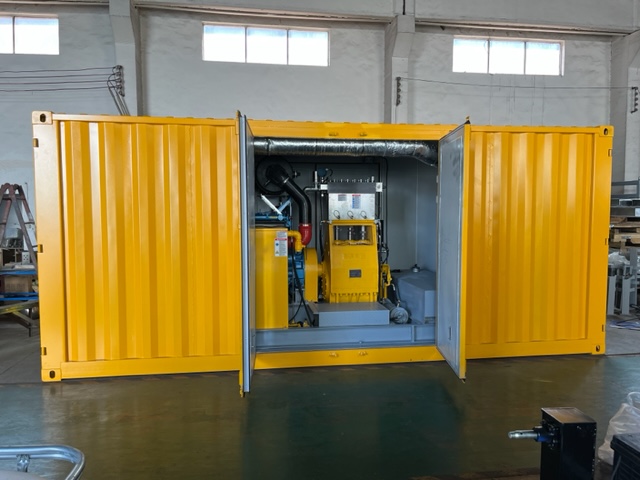

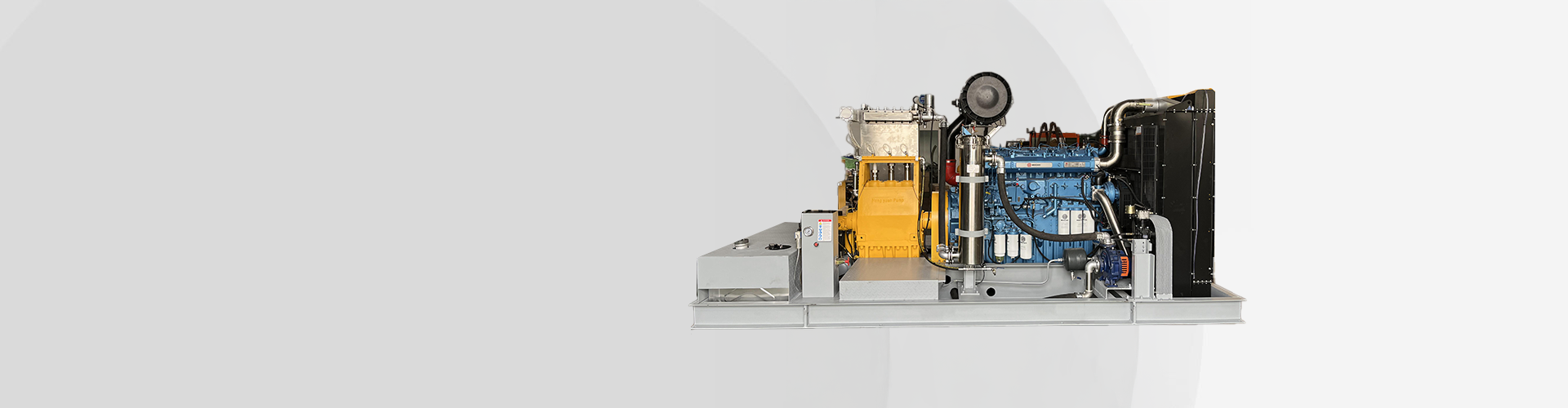

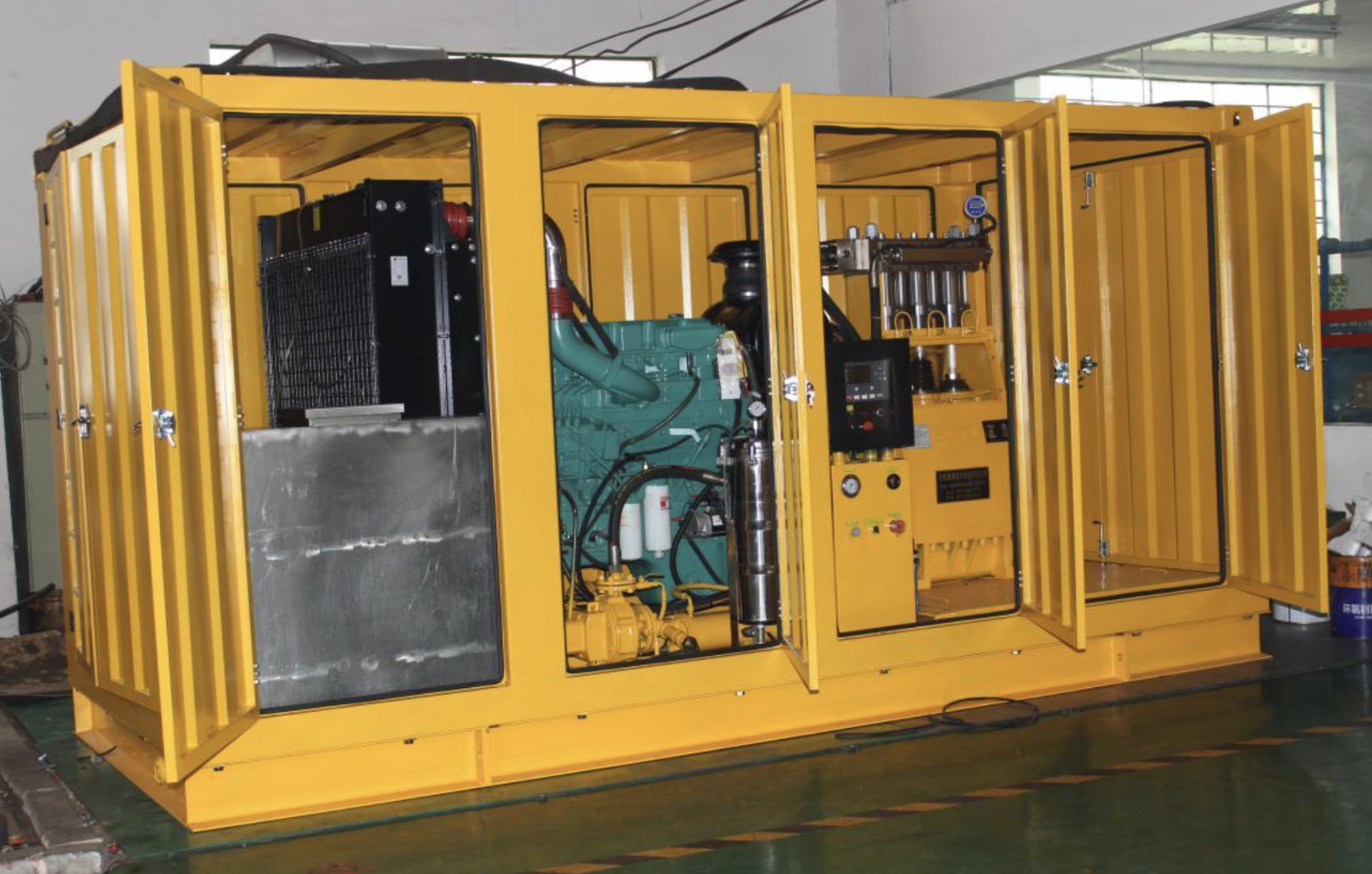

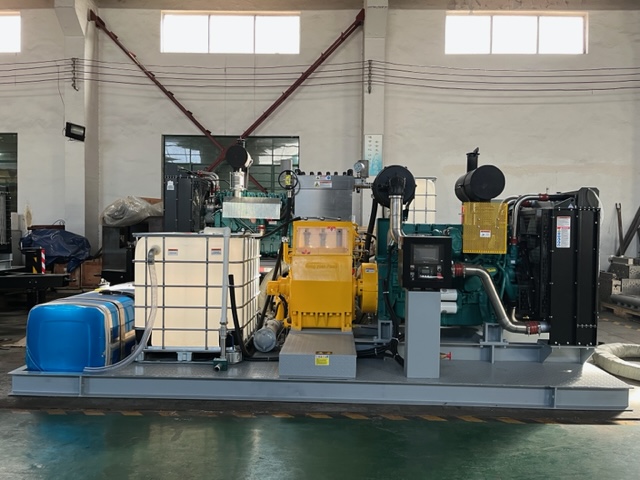

Stationary unit with diesel engine

Length: 4500 mm
Width: 2000 mm
Height: 2400 mm
Weight: 7500 kg

High Pressure Pump
Weight:approx.1500 KG

An integrated lubricating oil and piston cooling system to improve the service life
Built-in double gear reducer to make transmission balance higher efficiency
Special design of the crankcase magnetic filter
Crankcase forced lubrication system
An integrated ball type liquid inlet valve design, greatly improving the efficiency of fluid mechanics
Computational fluid mechanics design in dynamic load to ensure the highest reliability under max duty working conditions

Model	Plunger Diameter(mm)	Flow (l/min)	RBR 280kw (bar)	RBR 315kw (bar)	RBR 355kw (bar)	RBR 400kw (bar)	RBR 450kw (bar)	Strock D n1	R.B.M n2
WHY45022 WHY45024 WHY45026 WHY45028 WHY45030 WHY45032 WHY45034 WHY45036 WHY45040 WHY45045 WHY45050 WHY45055 WHY45060 WHY45065 WHY45070 WHY45075 WHY45080 WHY45085 WHY45090 WHY45095 WHY45100 WHY45105 WHY45110	22 24 26 28 30 32 34 36 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110	62 74 87 101 116 132 149 167 206 261 322 390 464 544 630 725 825 930 1040 1160 1290 1420 1560	2300 1900 1600 1400 1250 1100 100 870 700 550 450 370 310 260 230 200 170 150 130 120 110 100 90	2600 2200 1800 1600 1400 1200 1100 980 800 620 500 420 350 300 250 220 200 170 150 140 120 110 100	2900 2400 2100 1800 1600 1400 1200 1100 900 700 570 470 400 330 290 250 220 220 170 160 140 130 120	3300 2800 2350 2050 1800 1550 1400 1250 1000 800 650 530 450 380 330 280 250 220 200 180 160 150 130	3500 3100 2600 2300 2000 1700 1500 1400 1100 900 700 600 500 43 370 320 280 250 220 200 180 160 150	1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500	456 456 456 456 456 456 456 456 456 456 456 456 456 456 456 456 456 456 456 456 456 456 456
