13200

WHY13200 high pressure pumps are built to operate at the continuous maximum duty stated in the performance parameters. Just compare the crankshaft speed, average plunger speed, plunger diameter and power rating.

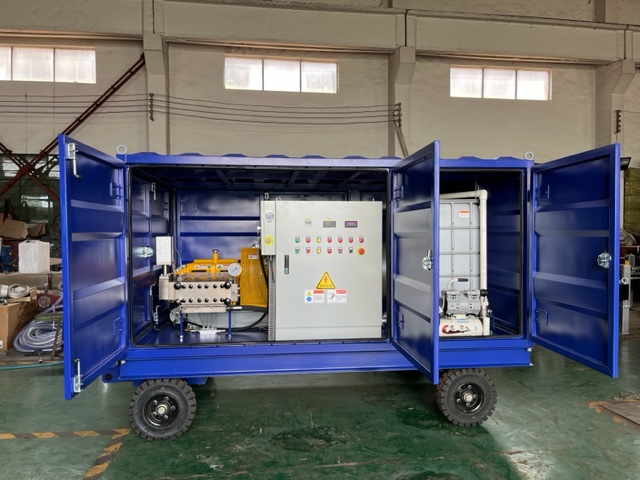

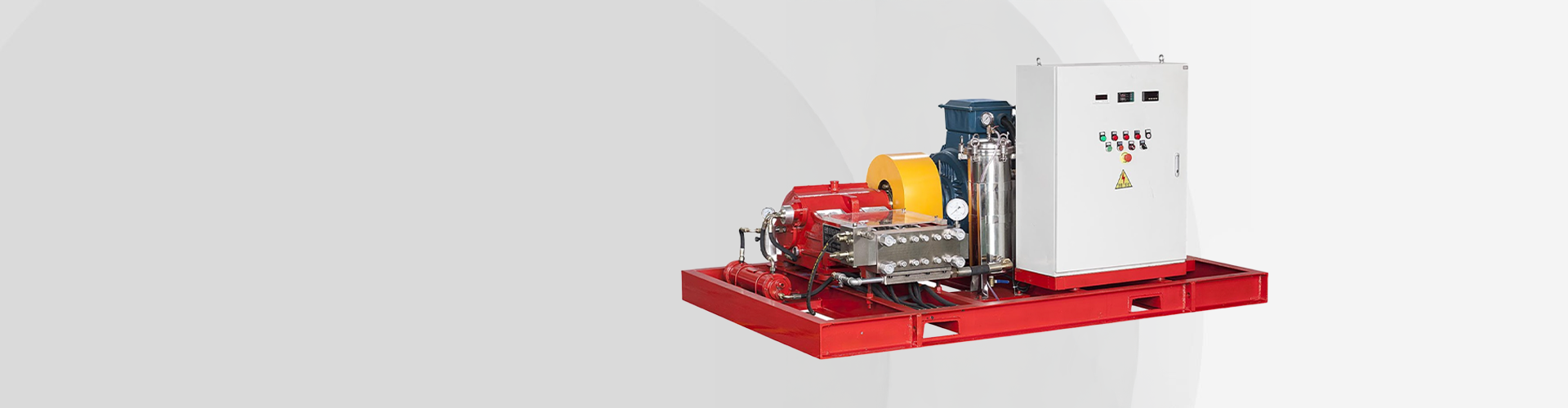

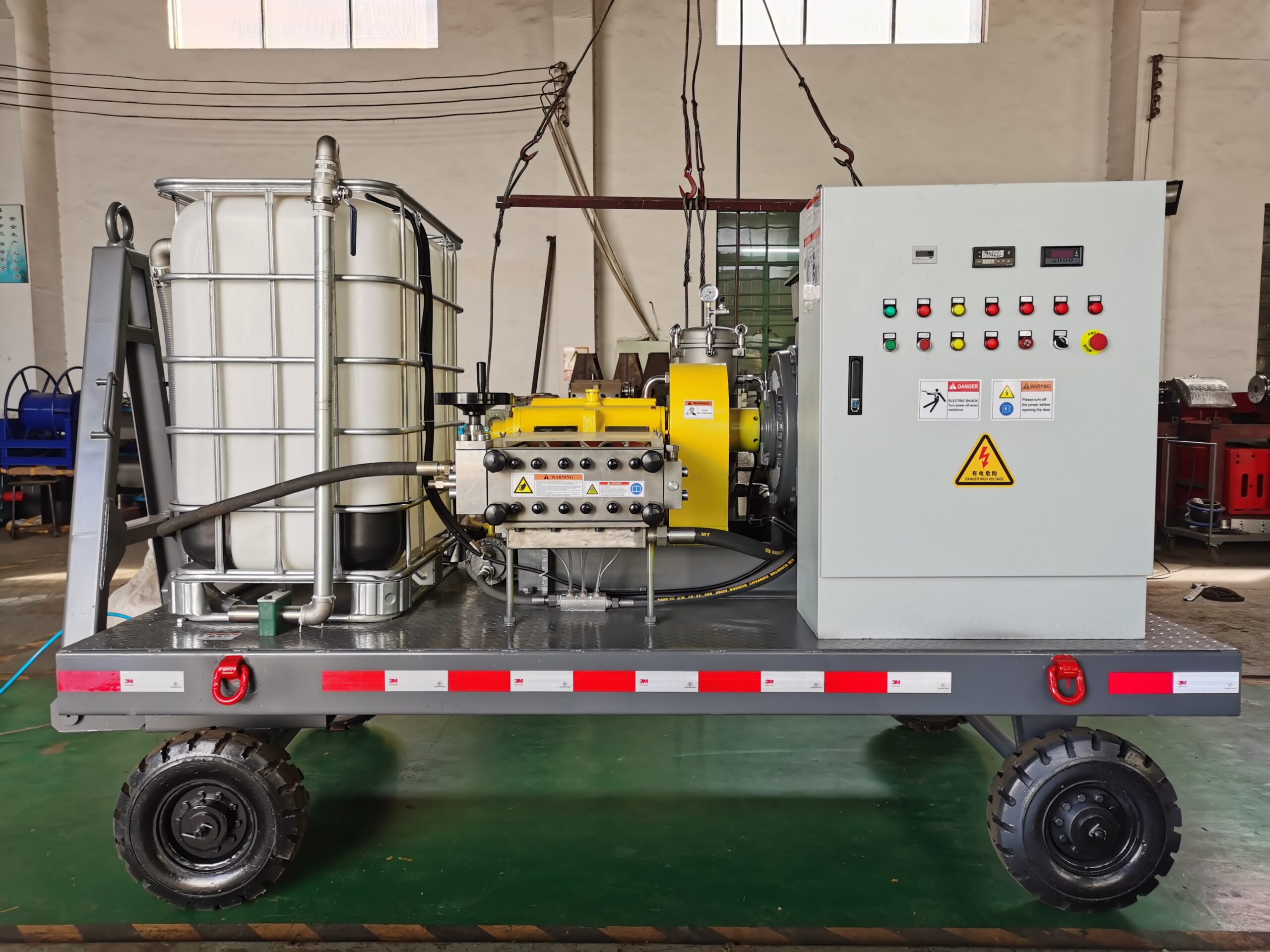

Stationary unit with electric motor

Length: 2200 mm - Width: 1600 mm - Height: 1600 mm - Weight: 1800 kg

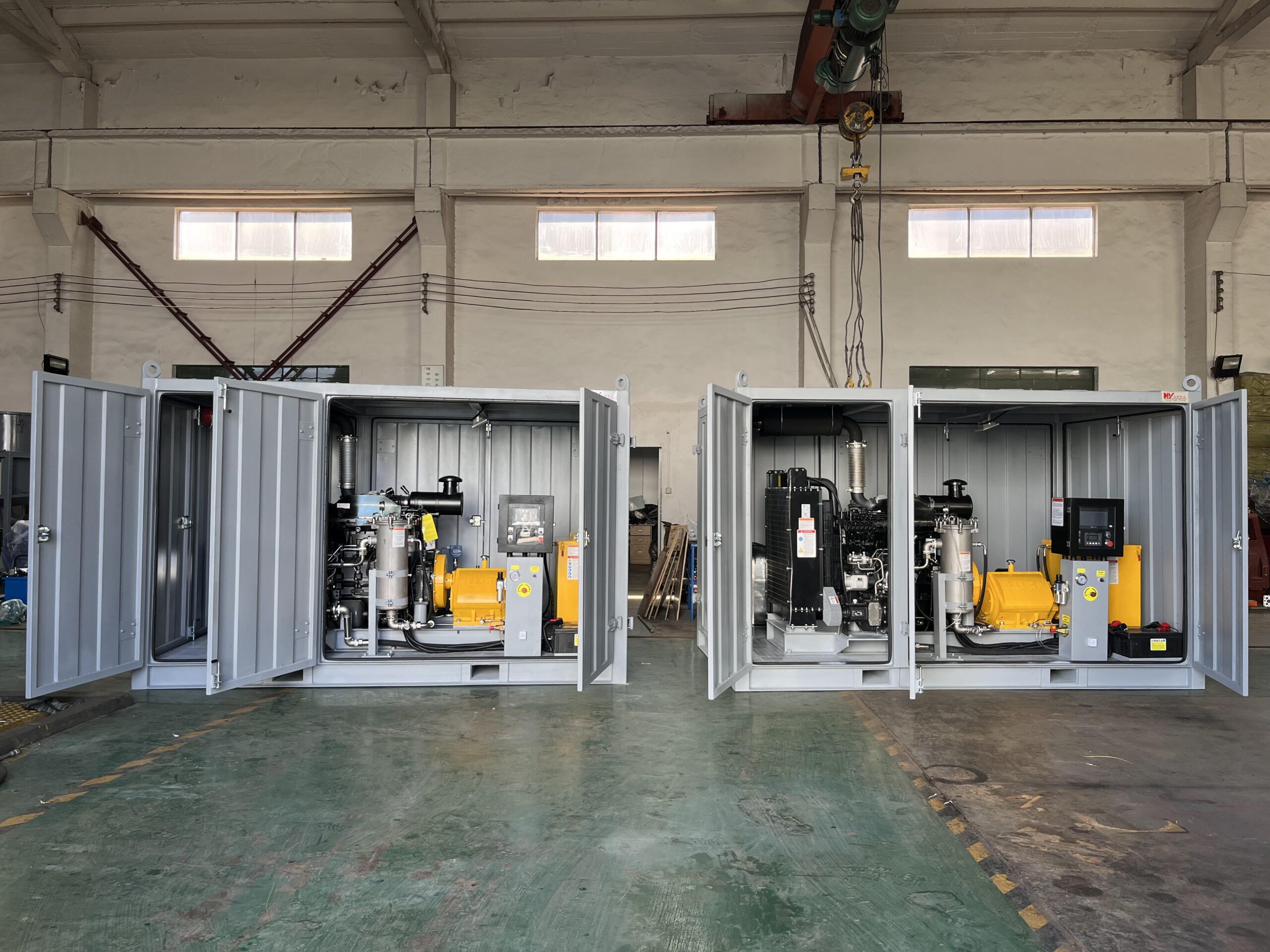

Stationary unit with diesel engine

Length: 2800 mm - Weight: 2000 mm - Height: 2000 mm - Weight: 2800 kg

- Features

Power ratings up to 132kw
Horizontal 3 cylinder design
Wide variety of complementary ancillaries
Stainless steel pump head free of alternating stress
Spring Preload high pressure sealing make it longer life
Solid solid ceramic plunger to ensure high strength and stable operation

An integrated lubricating oil and piston cooling system to improve the service life
Built-in double gear reducer to make transmission balance higher efficiency
Special design of the crankcase magnetic filter
Crankcase forced lubrication system
An integrated ball type liquid inlet valve design, greatly improving the efficiency of fluid mechanics
Computational fluid mechanics design in dynamic load to ensure the highest reliability under max duty working conditions

Model	Plunger Diameter(mm)	Flow (l/min)	RBR 55kw (bar)	RBR 75kw (bar)	RBR 90kw (bar)	RBR 110kw (bar)	RBR 132kw (bar)	n1
WHY13216 WHY13218 WHY13220 WHY13222 WHY13224 WHY13226 WHY13228 WHY13230 WHY13232 WHY13234 WHY13236 WHY13240 WHY13245 WHY13250 WHY13255	16 18 20 22 24 26 28 30 32 34 36 40 45 50 55	26 32 40 48 57 67 78 90 102 115 129 159 202 249 301	1100 850 700 570 480 400 350 300 260 230 210 170 130 110 90	1500 1150 940 780 650 550 480 420 370 320 290 230 180 150 120	1800 1400 1120 930 780 670 580 500 440 390 350 280 220 180 150	2200 1700 1400 1150 960 820 700 600 540 480 430 350 270 220 180	2800 2100 1700 1400 1200 1100 880 770 670 600 530 430 340 280 230	1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500 1500
